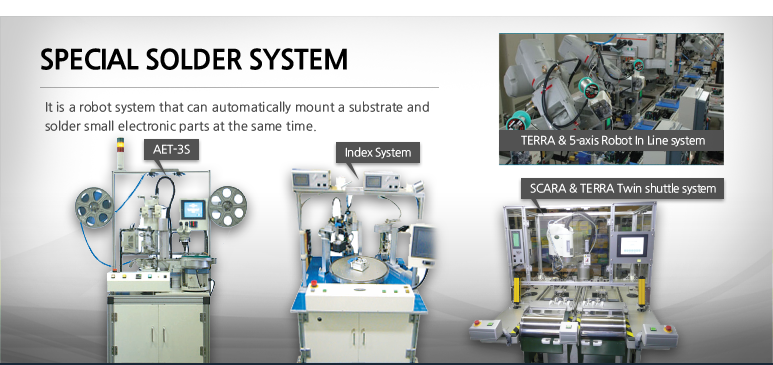

- AET-3S
A robot system capable of automatically mounting a substrate and soldering a small electronic component at the
same time
- Index System
A system that performs two-station soldering using an indexable and then simultaneously determines the soldering
result and performs normal inspection using CCD image processing
- TERRA & 5-axis Robot In Line System
Soldering system that combines multiple 5-axis robots and TERRAs to automatically transfer substrates to the
Inline and perform high-level soldering
- SCARA & TERRA Twin shuttle System
Soldering system for high-speed soldering with twin shuttle system employing JS-SERVO SCARA and TERRA
9AET-3S Key Points
Parts supply
Auto-supplies Crystal, Sensor, Switches, Connector to Ball Feeder
Cutting, Forming
Molded Lead Wires
board transfer
Automatic feed of substrates on TAPE to reel
Soldering
Solder 2 points simultaneously with parts fixed by mounting to the substrate
Tact time
3sec
Weight, Size
340kg, 1,340(W)×1,200(D)×1,600(H)mm
Index System Key Points
Parts supply
The user sits on the jig for work, and then starts the two-hand start button.
Part Return
Transfer to each station of the Index Table.
Soldering
Point 3 with 2 LUNAs and slide soldering 4 points in 2 stations.
Vision Inspection
CCD camera determines soldering results in 2 locations and 7 points
Functional test
Power supply and functional inspection using the inspection probe.
Tact time
Soldering 7 points / 15 sec
Weight, Size
340kg, 1,340(W)×1,200(D)×1,600(H)mm
TERRA & 5-axis Robot In Line System
Soldering robot
10 In Line Type 5-axis robots
Soldering
Fast and accurate high-speed soldering by connecting multiple robots
Transfer Type
Transfer by sensor control to Twin Chain Conveyor
Tact time
5 Sec
SCARA & TERRA Twin shuttle System
Soldering robot
JS450 1 piece
Soldering
Fast and accurate soldering with faster JIG exchange time
Transfer Type
Twin LM Sylinder transfer.
Tact time
11 Sec
-Soldering special iron unit
In order to optimize the soldering environment, we produce special iron units according to the order.
