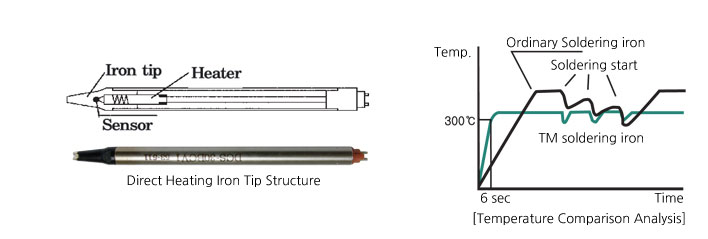

1. All models are equipped with TM soldering irons that use the DIRECT heating method, which offers excellent thermal characteristics.
It maintains stable temperature characteristics with a heat recovery performance that reaches 300℃ in approximately 6 seconds, enabling rapid soldering.
With an easy-to-replace cartridge type, the soldering tip can be quickly exchanged without any misalignment after replacement.
2. All models come standard with the ZSB Feeder to prevent solder ball spatter.
A groove is automatically formed during solder feeding by the roulette blade, allowing the expanding flux gas generated during soldering to escape through this groove. This minimizes solder ball and flux spatter, making it an essential feature for soldering high-tech components and automotive electronic part
Solder is fed by the roulette cutter, ensuring highly precise solder volume delivery
3. All models, except ECHO, are equipped with RSP and RSL iron units featuring automatic adjustment functions.
The secondary solder feeding position on the soldering tip can be adjusted by moving the stopper up or down, enabling automatic switching between the primary and secondary solder feeding positions during operation.
This enhances thermal conductivity during the initial solder feed through pre-soldering, and maintains optimal flux activation during the secondary soldering process, thereby improving soldering quality, especially in lead-free soldering applications.
Equipped with a vertical and horizontal adjustment mechanism, the solder feeding position can be easily adjusted.
For the Slide Iron Unit, three levels of weight adjustment are available, making it ideal for soldering delicate components such as LCDs and FPCs that are sensitive to impact.

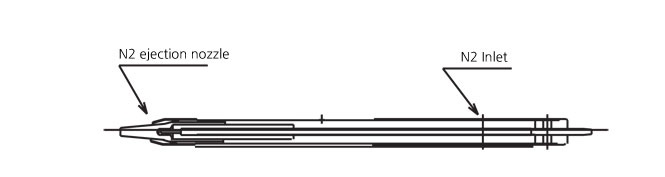

4. N2 Direct Blow soldering tip cartridges.
By using a nozzle integrated with the soldering tip, the system enables effective nitrogen discharge with a minimal amount of N₂, supporting high-quality lead-free soldering.

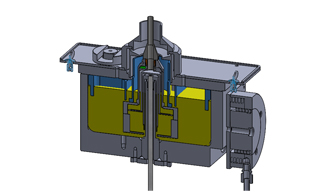

5. Belt Less Solder Pot
A solder pot with a belt-less impeller drive system that does not use chains or belts for classification and transport.

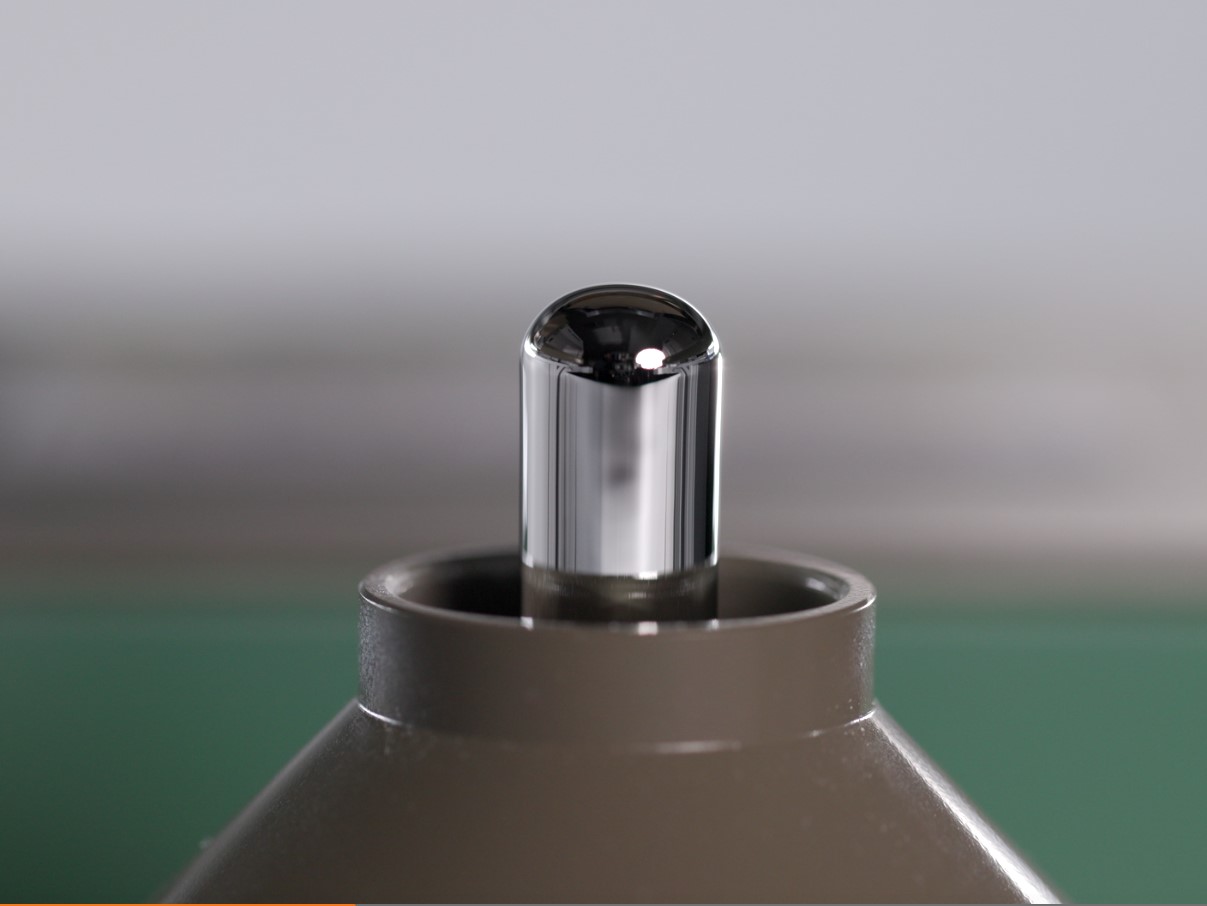

6. Auto Nozzle Cleaning Deivce
Automatically supplies nozzle cleaning liquid and performs nozzle cleaning at preset intervals
7. Dust reduction device
Dust reduction device in the solder pot
Patent NO : 10-2021-0031560 (DAS 4627)
8. Nitrogen smooth supply unit
Nitrogen smooth supply unit
Patent NO : 10-2021-0031561 (DAS 6C92)
Our customer technology support system with various techniques and technologies of automatic soldering is based on the robot technology required for the operation of the customer's automatic soldering facilities
We support quality and productivity improvement with the support of automatic soldering technology.
