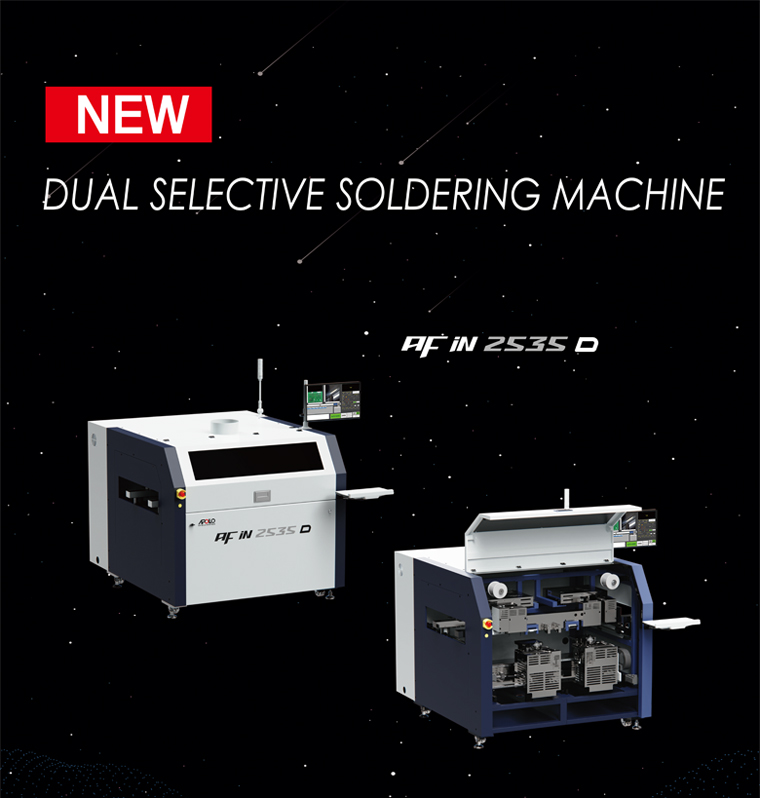

AF IN 2535D
Home > New Products >AF IN 2535D
 |
| [AF IN2535D 주요 사항 ] - Dual POT & Dual Dot Fluxer - Dual Top-Heater - Utility system: Soler-wire Feeder, Solder Temperature Correction, Automatic Classification Correction, Automatic Nozzle Cleaning Product Location Correction Vision, QR/3D-barCode - Work area: POT1 250×350×60 POT2 250×350×60 - Operation method: POT1 & POT2 can be performed simultaneously or separately - Power supply: 220V 3 phase - AIR : 0.5MPa ~ 0.7MPa - Exterior size: 1950 mm × 1650 mm × 1520 mm - Weight: 1100 kg - Nitrogen : Intrusion nitrogen is heated and fed into the POT - Program method: Camera image scan, live direct teaching, Gerber data - Intuitive and Easy User Interface |

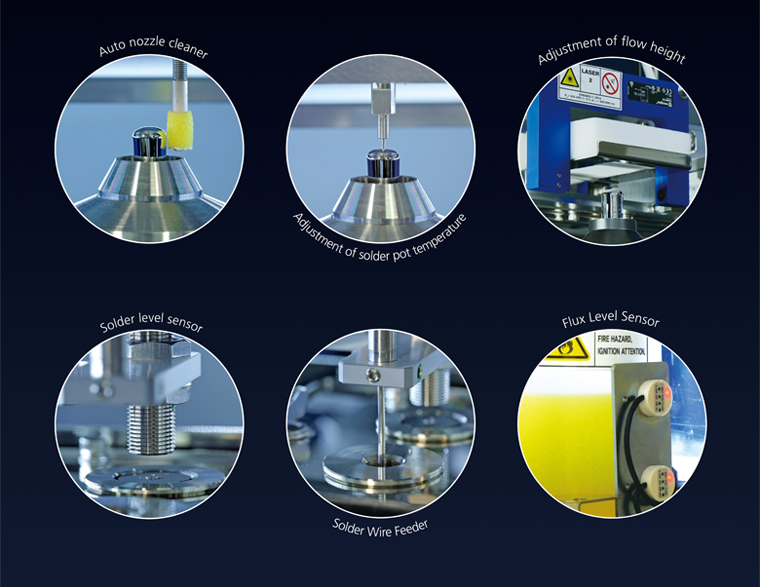

[Key Functions] |
 |
