MULTI-HEAD

Home > Products > Soldering-only > Multi-Head

Features
Qualification

- We realized a multi-dimensional head soldering system according to various order specifications.

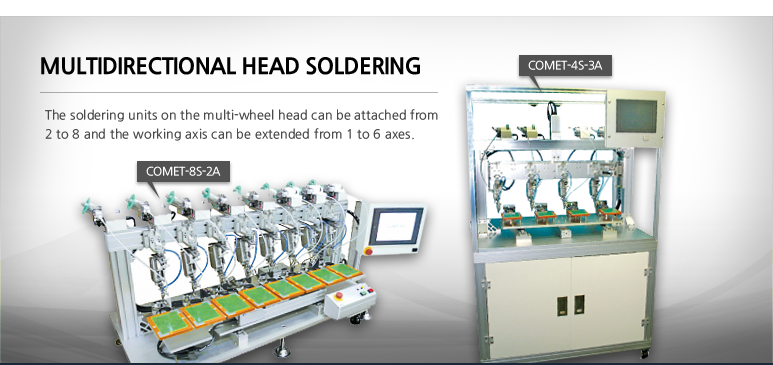

- The soldering units on the multi-wheel head can be attached from 2 to 8 and the working axis can be extended from 1
to 6 axes.

- The large LCD touch screen enters teaching and soldering conditions, and the drive motor can be selected for the
servo motor and stepping motor.

COMET 4-axis multi-dimensional head order
COMET-2S-OA....6A	2-way head, 0-6 axis possible
COMET-2S-OA....6A	3-way heads, possible up to 0-6 axes
COMET-2S-OA....6A	4-way head, 0-6 axis possible
COMET-2S-OA....6A	5-way head, 0-6 axis possible
COMET-2S-OA....6A	6-way head, 0-6 axis possible
COMET-2S-OA....6A	7-way Head, 0-6 Axis Possible
COMET-2S-OA....6A	8-way head, 0-6th axis possible

COMET 4-axis multi-wheel head system
Power		AC100V ~ 240V
Use lead thickness		Φ0.4mm ~ Φ1.6mm
Number of programs		0 ~ 100 Program
Soldering condition number		300조건 / 32 Step
Set temperature		5 ~ 500℃
Heater capacity		100W, 130W
External Input/Output		IN 16, OUT 16
Range of operation	X-axis	200, 300, 400, 500, 600mm
	Y-axis	200, 300, 400, 500, 600mm
	Z-axis	50, 100, 150mm
Options		guide, safety cover, area sensor, Index table, twitch shuttle, location correction

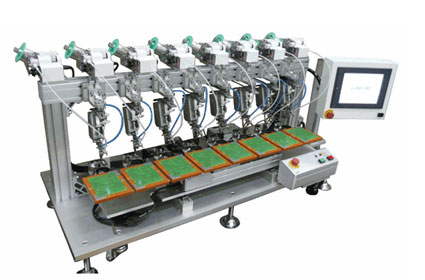

COMET-8S-2A 8 Lead & XYA 2 Axis X=200mm, Y=200mm	COMET-4S-3A 4 Lead & XYA 3 Axis X=200mm, Y=200mm, Z=50mm
