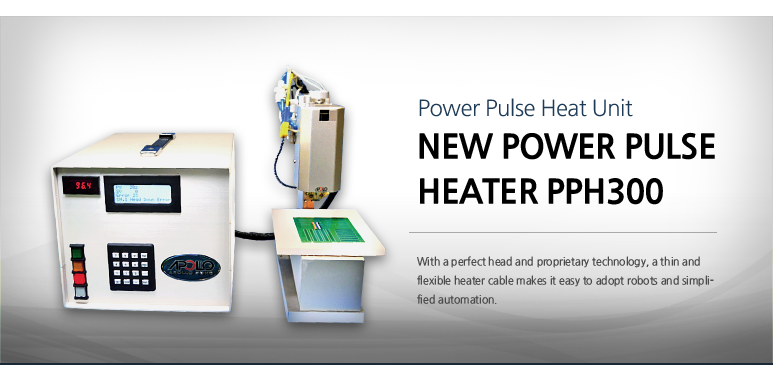

HEATER PPH300

Home > Products > Soldering-only > Heater PPH300

Features
Qualification

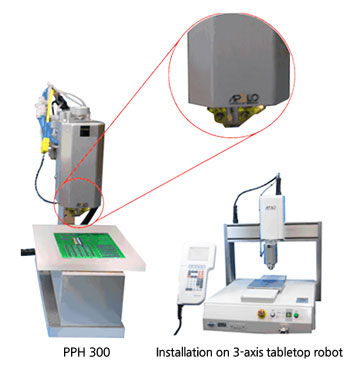

- With a perfect head and proprietary technology, a thin and flexible heater cable makes it easy to adopt robots and simplified automation.

- Perfect for tasks such as soldering, heat pressing, and heat pressing.

- Applied product
FPC, FFC lead compression soldering, flat cable compression soldering, etc

Product specifications
Type	PPH300
Desktop
Size(W x D x H)	320 x 450 x 230 mm
Input/Power Consumption	AC90 to 132V, AC180 to 250V single phase / 300VA
Supply air pressure	0.5MPa(dry Air)
Driving method	Inverter control by POWER-MOSFET
Overcurrent prevention function	Overcurrent detection by current sensor
Temperature control unit
Temperature detection sensor	K-type thermocouple with safety equipment
Temperature control system	PID control by 16-bit CPU
tool maximum temperature	150˚C ~ 500˚C
Setting heating time	Up to 99.9 seconds (0.1 second step)
Interface	Parallel I/0 with Photocoupler
