FEEDER ZSB-10/16

Home > Products > Soldering Equipment > Feeder ZSB-10/16

Features
Qualification
Outer size

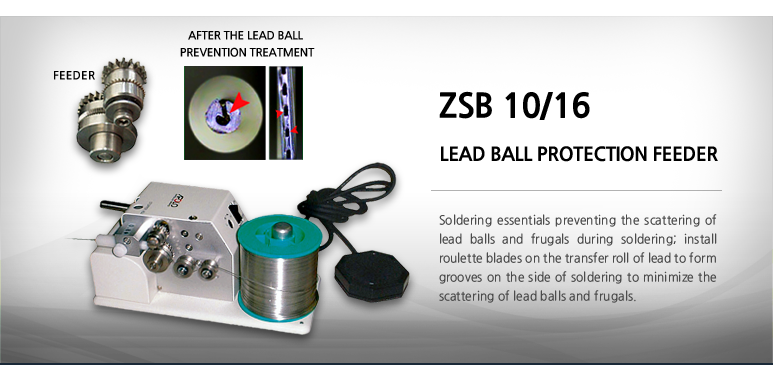

- Soldering essentials preventing the scattering of solder balls and Flux during soldering; install roulette blades on the transfer roll of lead to form grooves on the side of soldering to minimize the scattering of solder balls and Flux.

- Essential for soldering high-tech parts or automotive electronic parts.

Lead Ball Occurrence Comparison Test

A. Example of soldering using ZSB-10	B. Example of normal lead soldering

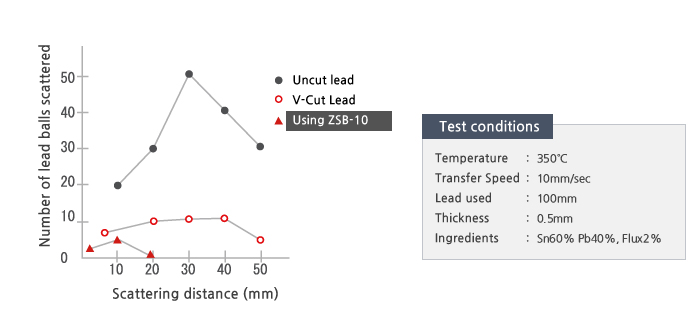

Results of Comparative Analysis of Lead Ball Occurrence

ZSB-10/16 Specifications
ZSB-10(100-115V)	0.4mm ~ 1.0mm
ZSB-10(220-240V)	0.4mm ~ 1.0mm
ZSB-16(100-115V)	1.0mm ~ 1.6mm
ZSB-16(220-240V)	1.0mm ~ 1.6mm
Weight Size Power consumption	1.5Kg 190(W) x 85(D) x 80(H)mm 50VA
